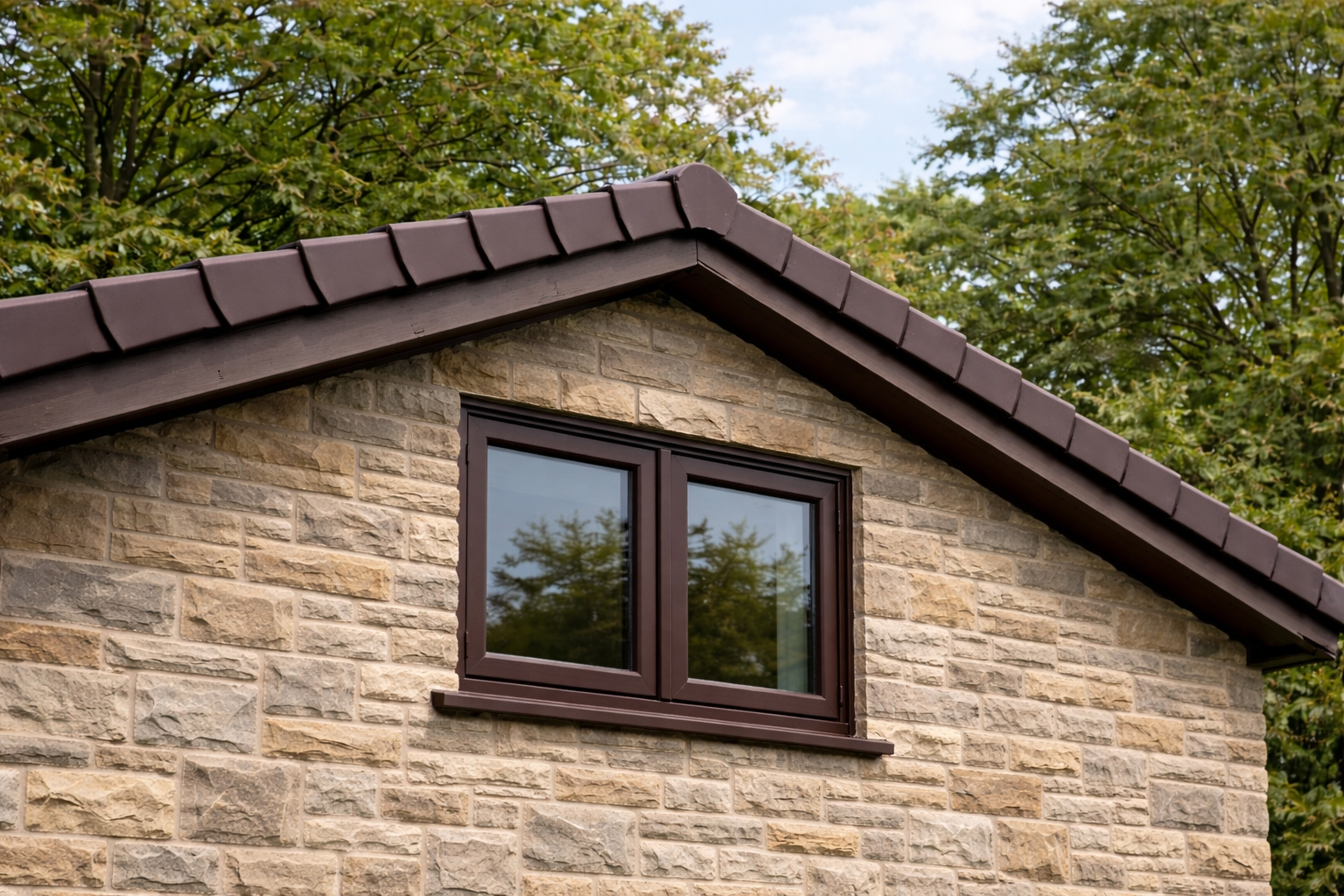

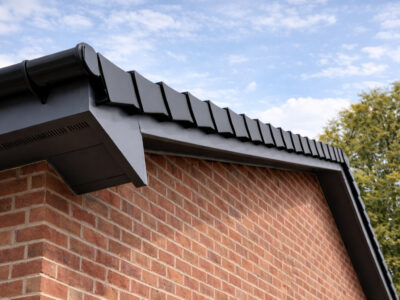

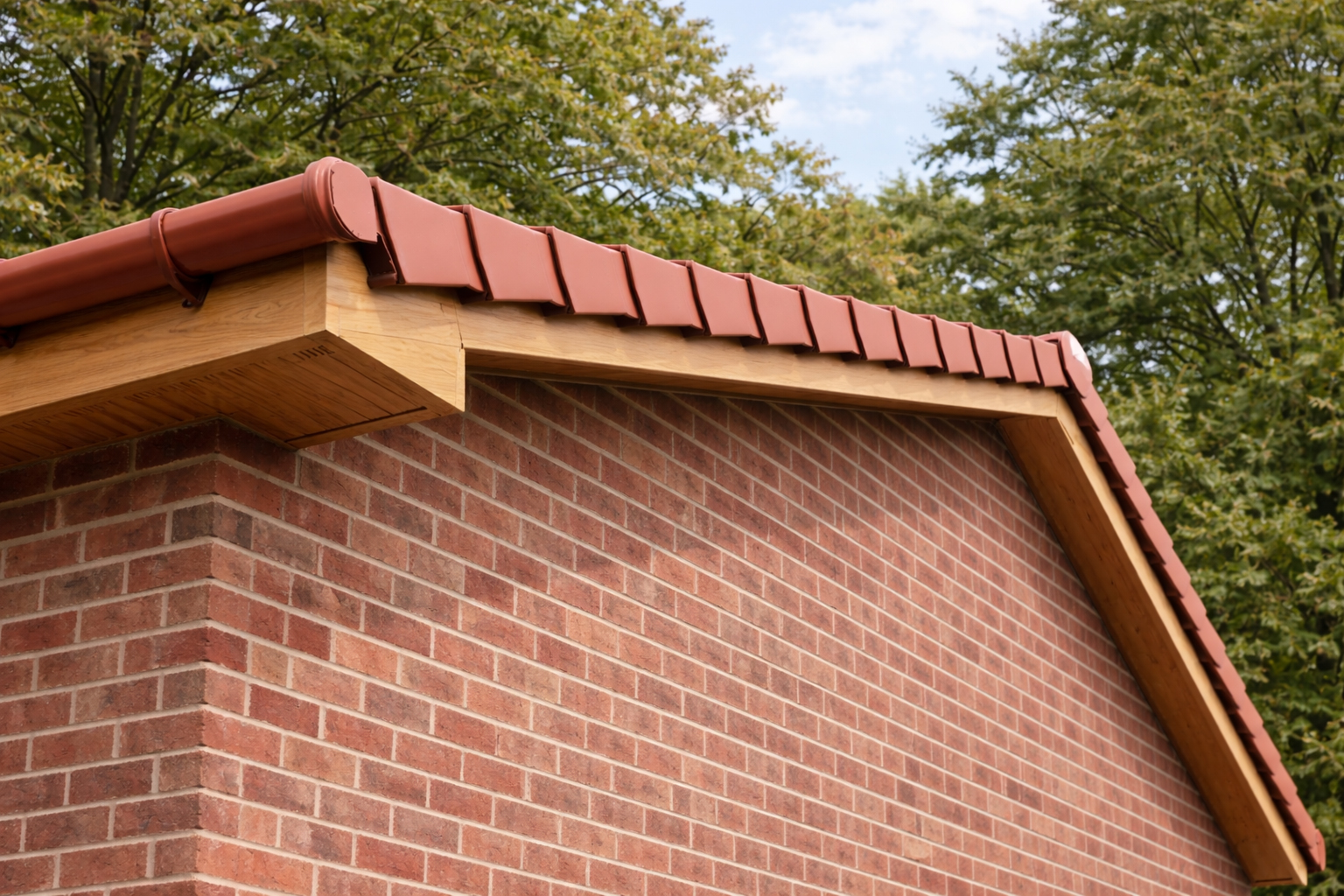

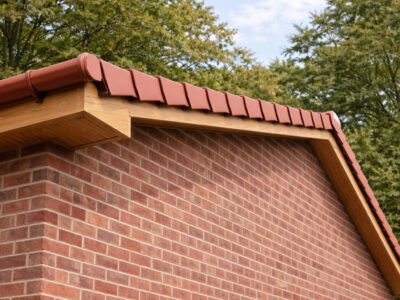

A universal, mortar-free dry verge system manufactured from durable UV-stable polypropylene. The universal design fits both the left and right sides of a gable, simplifying stockholding and installation. Suitable for roof pitches from 15° to 55° and batten gauges from 270mm to 345mm, the system provides a neat, secure and low-maintenance finish to the roof verge.
UV-stable polypropylene | Impact resistant | Low maintenance
Universal design – suitable for either side of roof | Fast-fitting – 36 verge units in under 5 minutes | Mortar-free system |
BS5534/8612 Compliant | 20-year guarantee available
| Code | Grade | Thickness | Sizes (CM) | Guarantee | Enquire |
|---|---|---|---|---|---|
| OmniVerge |
|
20Years | Enquire |
| British Standard | BS-5534, BS-8612 |
|---|---|
| Compatible with | Pitches roof-verge applications on new-build and refurbishment projects, pitched roof angles between 15 and 55 degrees |
| Kit Contents | Dry Verge Units (50) |
| Roof Pitch | 15° to 55° |
| Batten gauge | 270mm to 345mm |
| Material | UV-stable polypropylene |

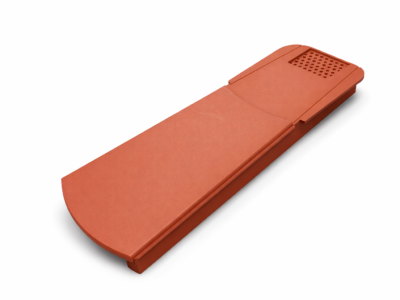

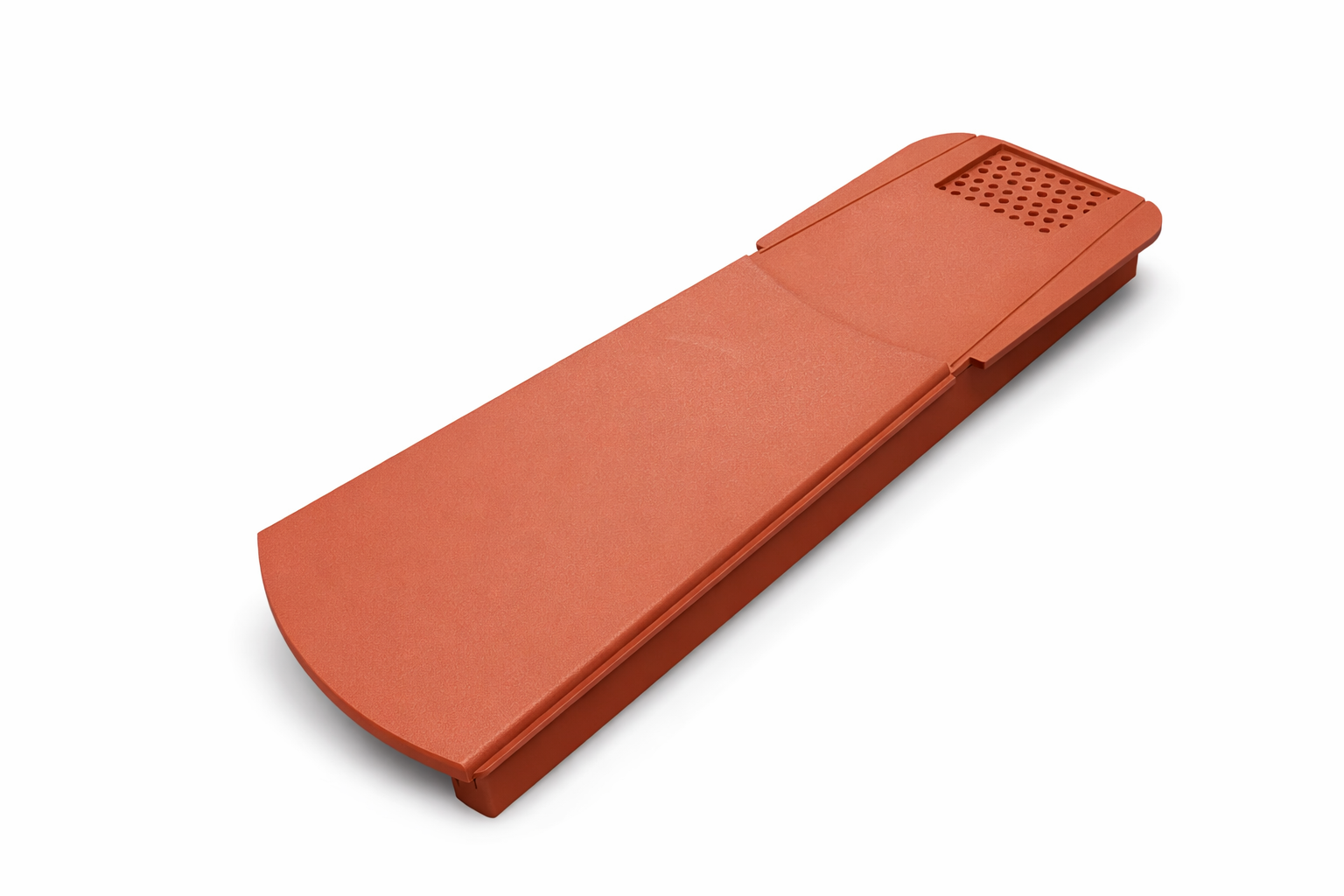

| Colours | Grey, Brown, Terracotta and Black |
| Tile compatibility | Most interlocking clay and concrete tiles |
| Unit weight | 0.20kg per verge unit |
| Fixing | Mechanical fixing into tiling battens |
| E-Scape OmniVerge Datasheet (1.76 MB) |

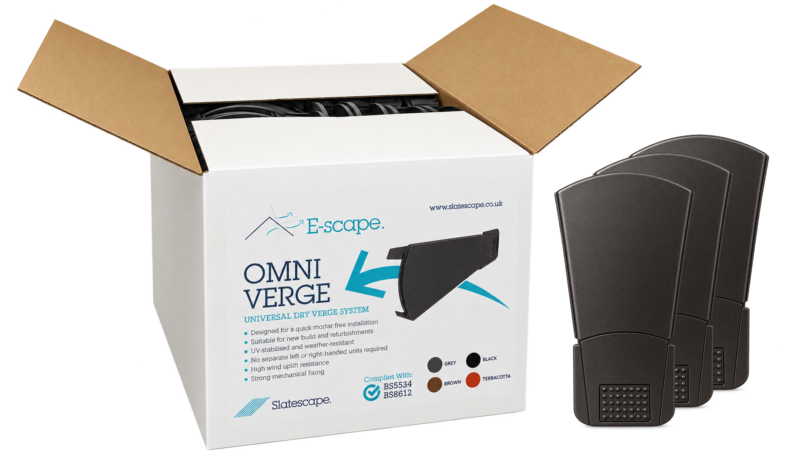

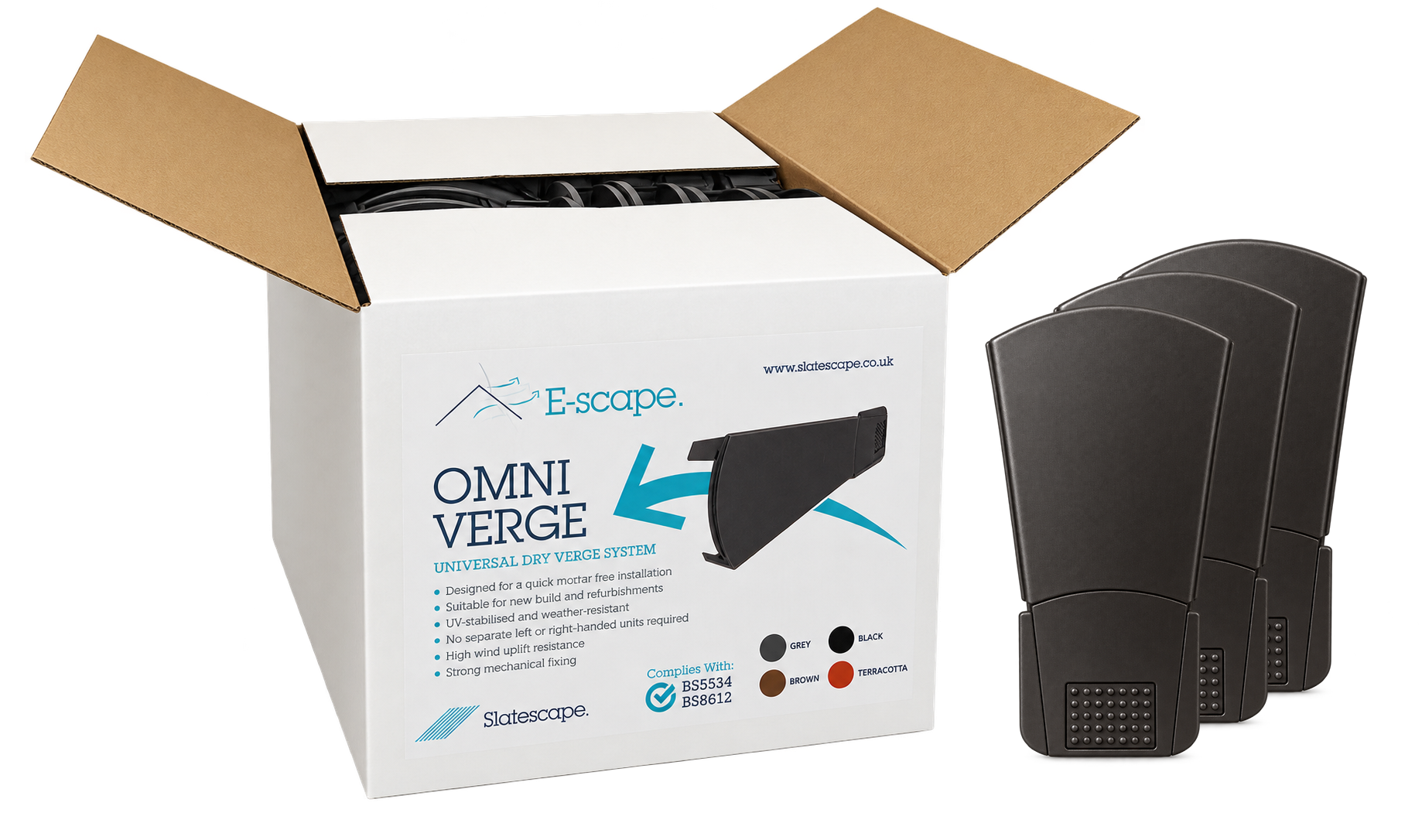

Dry Verge Box set

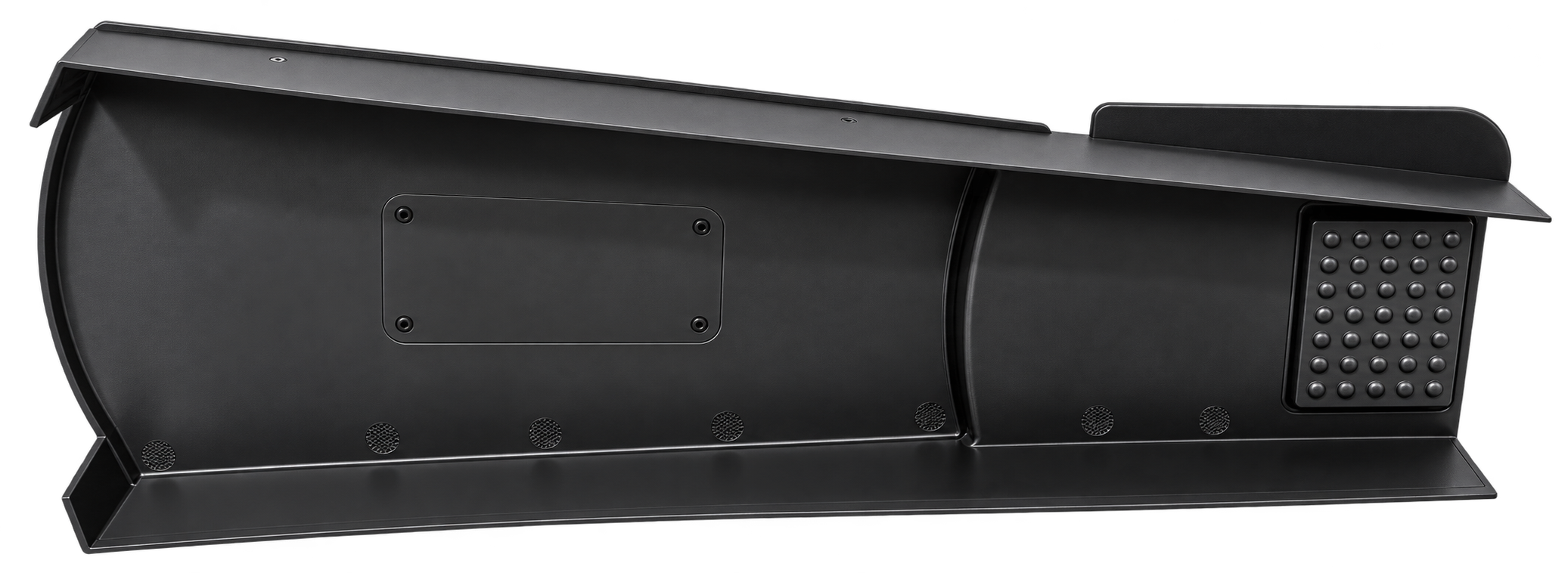

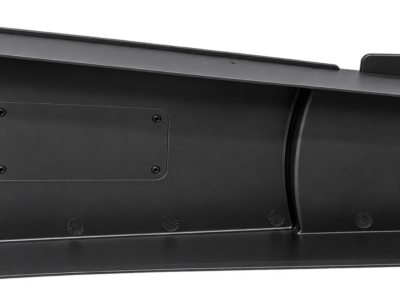

Dry Verge Black

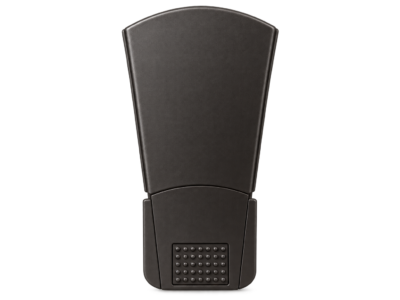

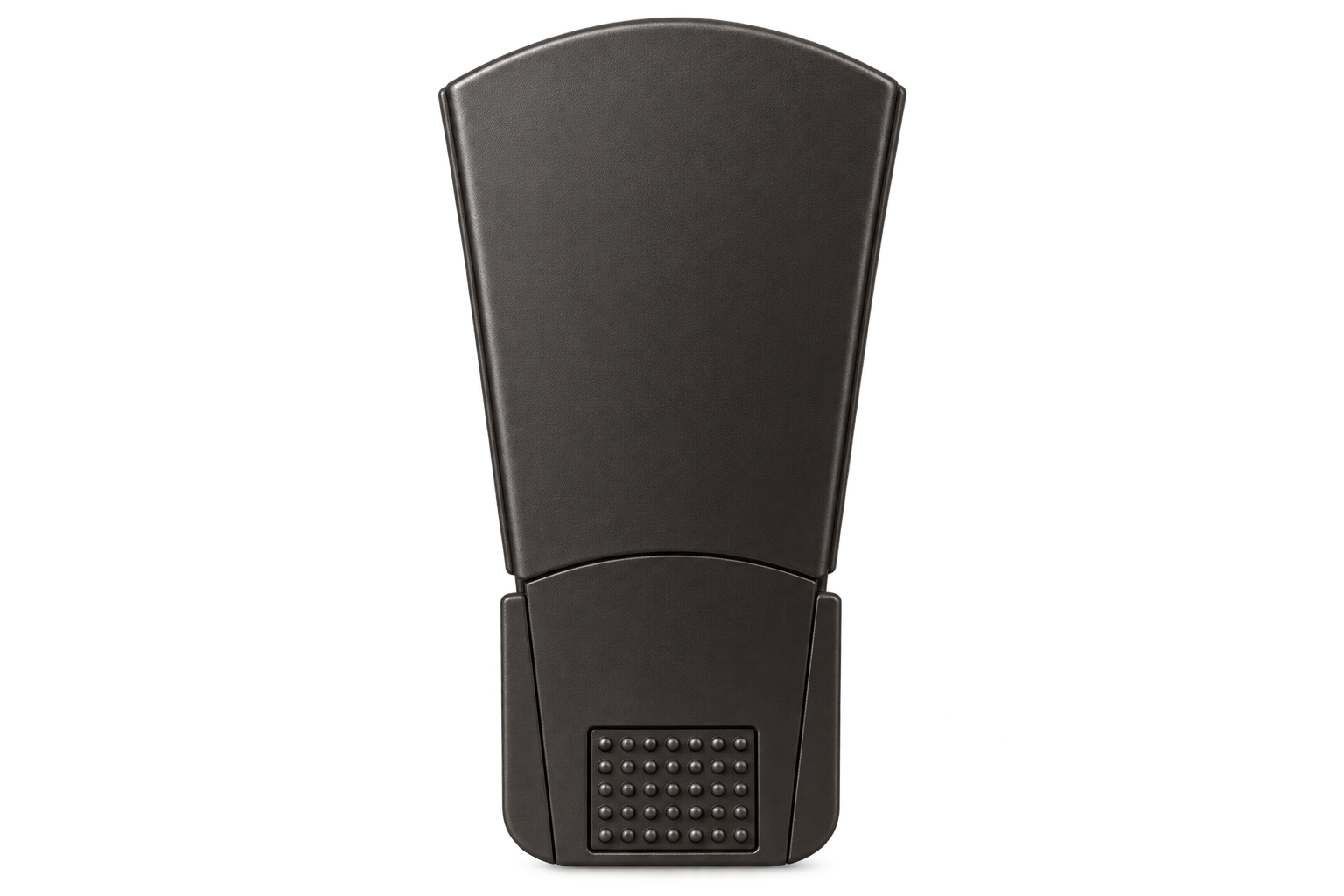

Dry Verge Black 2

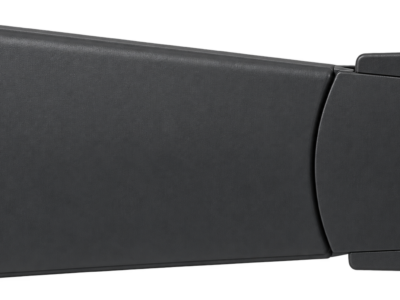

Dry Verge Black 3

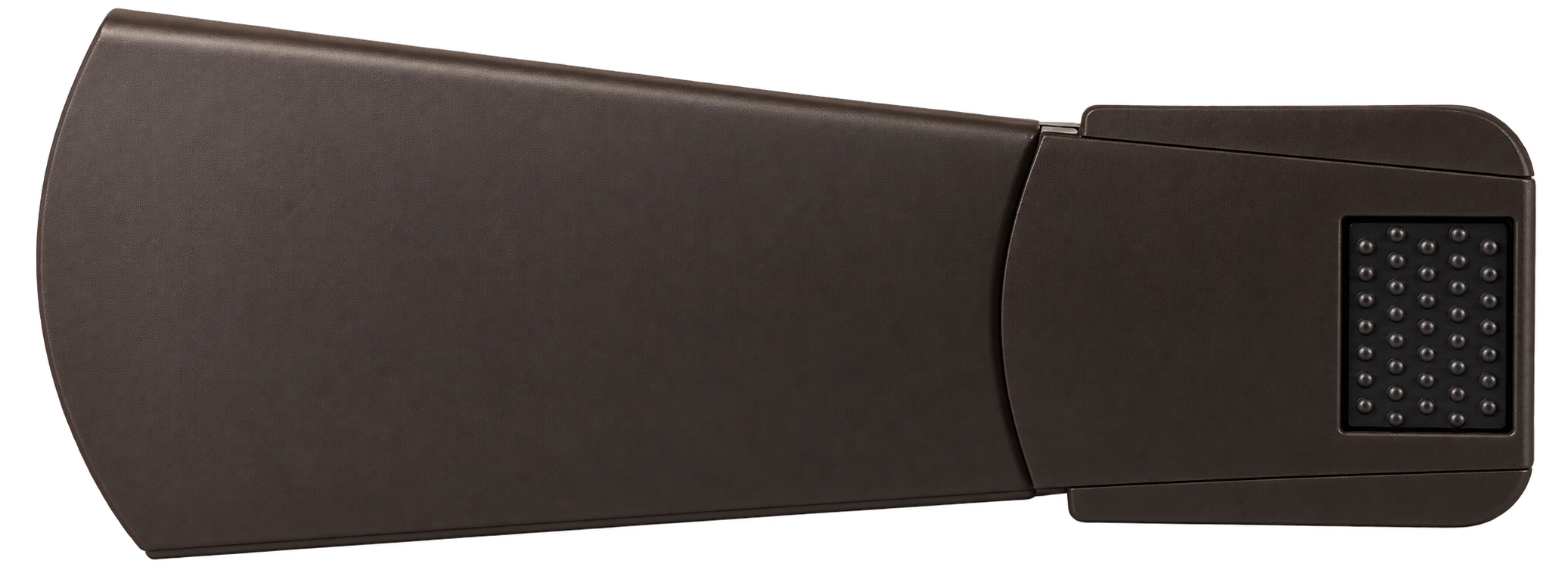

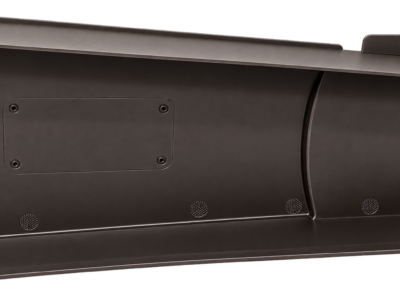

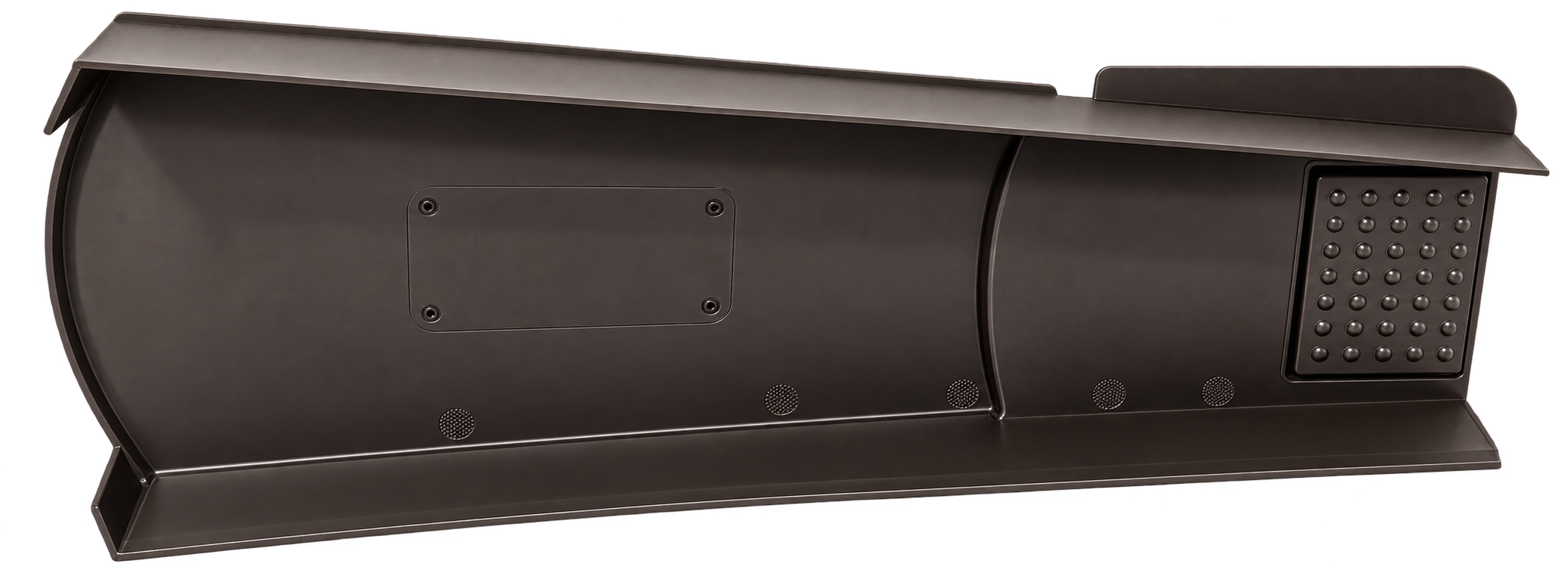

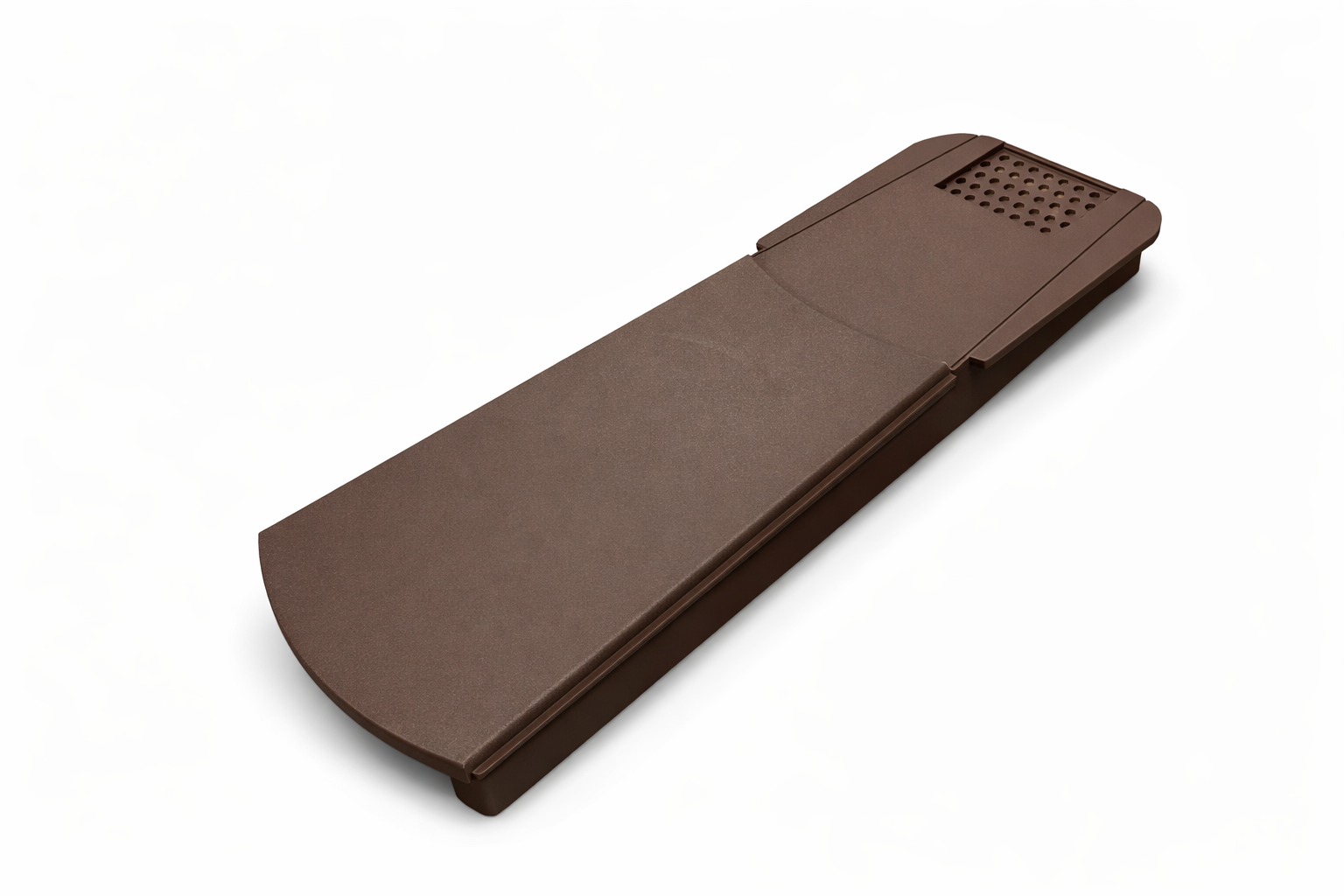

Dry Verge Brown

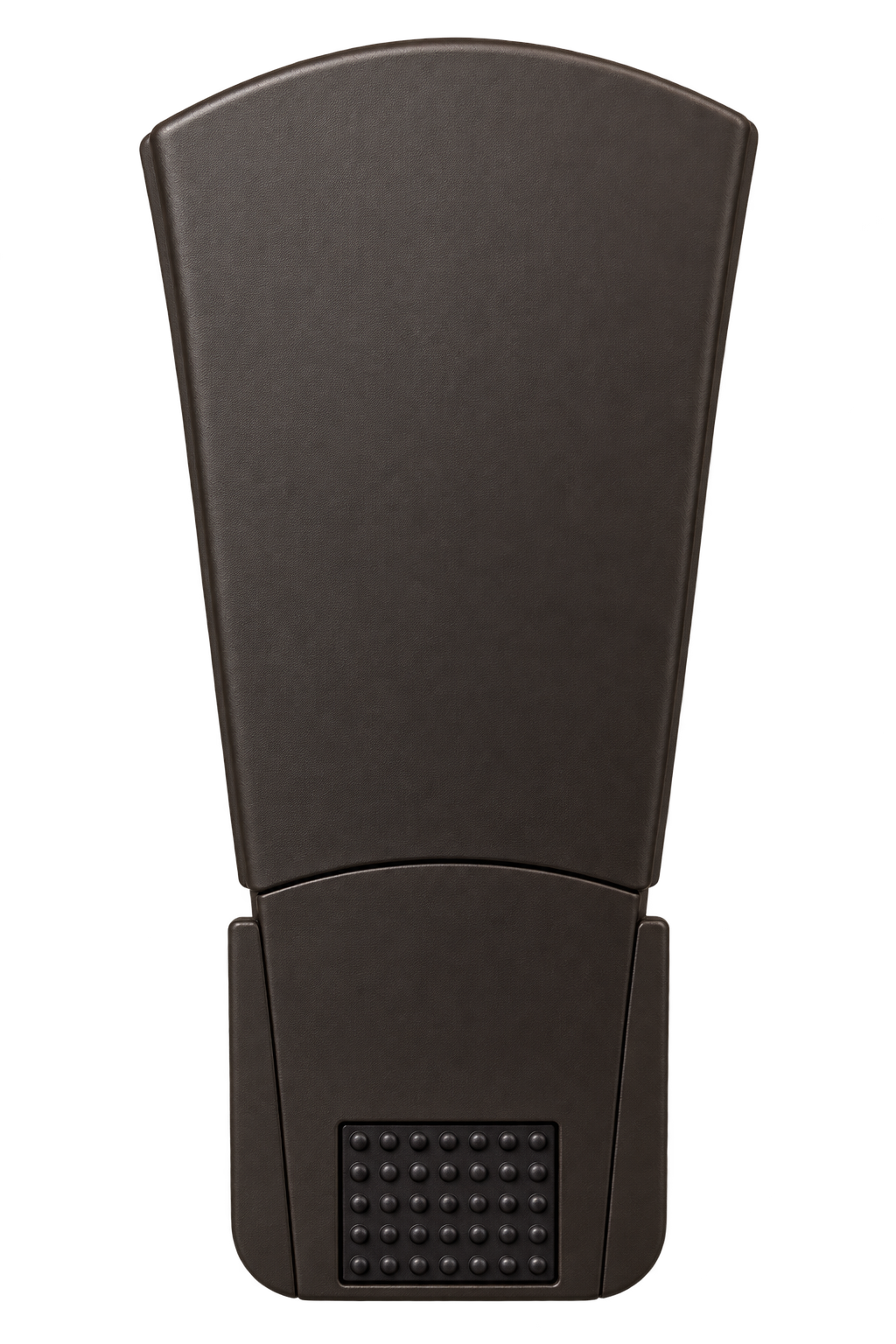

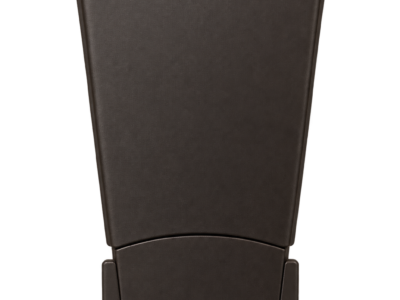

Dry Verge Brown 2

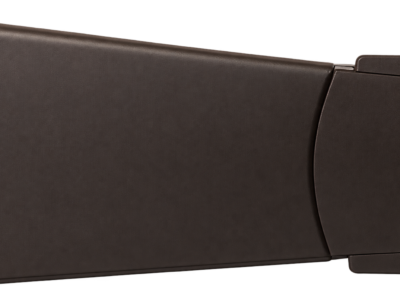

Dry Verge Brown 3
